Earth Moving Equipment
SKID STEER MINI CTX50
Image for reference only
Click on above thumbnails for alternate view |
|
Manufacturer: VERMEER
Model: CTX50
4 Hour: $200.00
Daily: $300.00
Weekly: $1,200.00
Instructions: <Click Here>
- Info

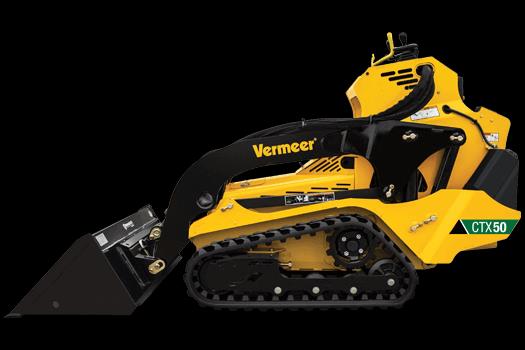

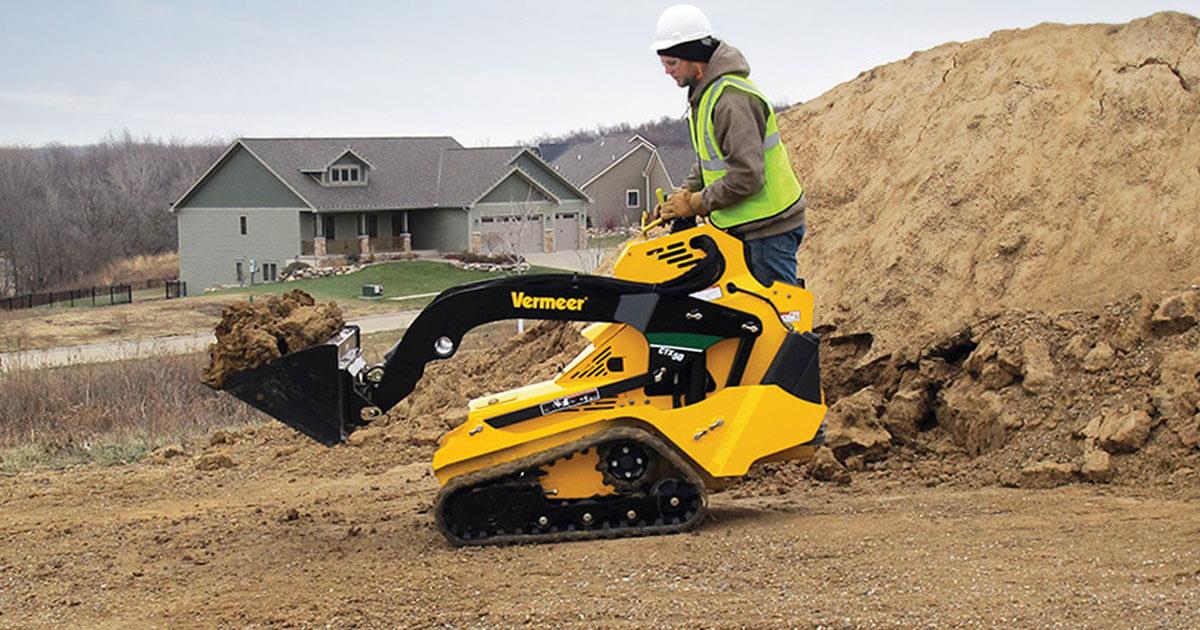

- The Vermeer CTX50 mini skid steer can maneuver in and out of small spaces. Featuring a 600-lb (272.2-kg) ISO-rated operating capacity and a tipping capacity of 1715 lb (777.9 kg), the CTX50 is well-suited to both the needs of the rental customer and landscape contractor. What s more, the CTX50 skid steer is track-driven, with a spring-cushioned operator platform for added safety and comfort. Versatile and equipped with a 72-in (182.9-cm) dump height, this mini skid loader saves labor and time.
- Length: 75" (190.5 cm)
- Width: 36" (90.2 cm) Bucket Width
- Height: 54.5" (138.4 cm)
- Weight: 2100 lb (952.5 kg)
- Hinge pin height: 72" (182.9 cm)
- Ground clearance: 6" (15.2 cm)
- Ground pressure: 4.5 psi (31.0 kPa)
- Engine Make/Model: Kohler Command PRO EFI ECH740
- Gross horsepower: 25 hp (18.6 kW)
- Torque (max): 38.8 ft-lb (52.6 Nm)
- Displacement: 45 cu in (747 cc)
- Fuel type: Gasoline Fuel tank capacity: 4 gal (15.1 L)
- Number of cylinders: V-twin
- Cooling medium: Air
- Max engine operating angle: 25 deg
- ISO-rated operating capacity: 600 lb (272.2 kg)
- Max forward travel speed: 3.5 m/h (5.6 km/h)
- Hydraulic tank capacity: 12 gal (45.4 L)
- Auxiliary pump high flow: 12.5 gpm (47.3 L/min)
- Auxiliary pump relief: 2950 psi (203.4 bar)
- Fittings: Quick coupler
- Steering: Single, pilot-operated joystick
- Lift and curl: Single, dual-axis joystick
- Battery: 12 volt
- 12 volt auxiliary power port
- Specifications are general and subject to change without notice.
- Fits in 5 x 12 trailer and must be pulled with 1/2 ton or larger vehicle with a class 3 hitch
